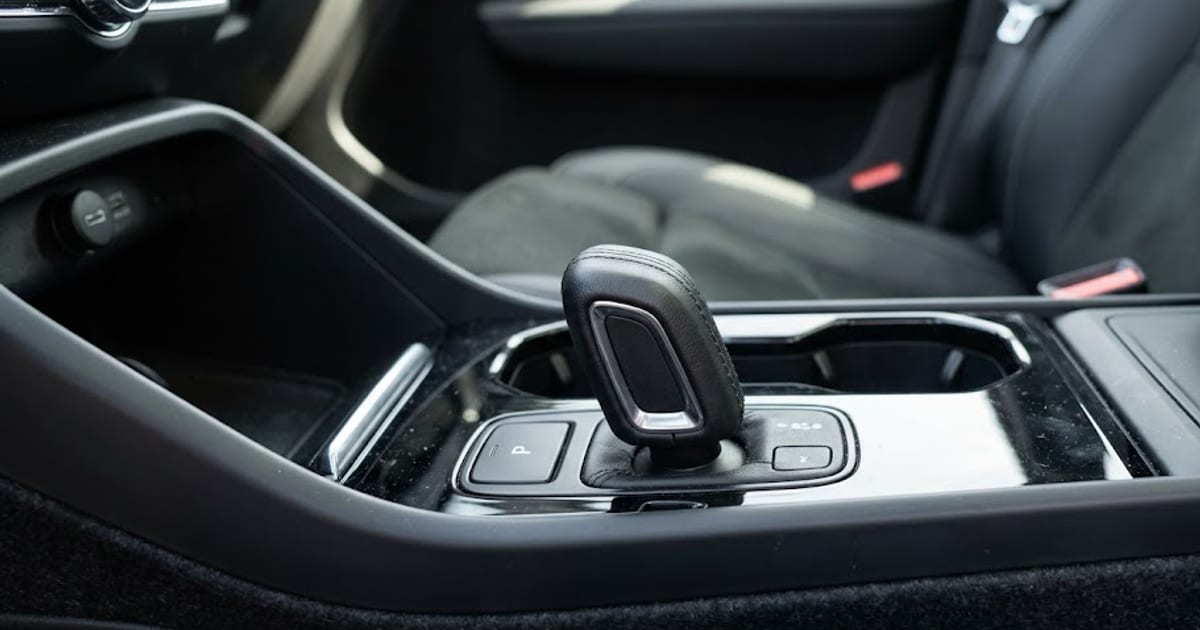

P08A6 means the control module has found that the sensors reporting the gear lever position do not agree with each other. The generic definition is "Gear Lever Position Sensor System – Multiple Sensor Correlation." It appears on vehicles with an electronic, shift-by-wire gear selector, where the lever or dial is not mechanically connected to the transmission and instead reports its position through several sensors at once.
Severity: moderate. Can you keep driving? Carefully. Depending on the vehicle, you may see a warning lamp, a message asking you to stop safely, or a selector that refuses some positions. The system is designed to fail safe, so it will usually refuse a selection rather than engage the wrong gear. If the car will not select drive or reverse reliably, do not drive it.
Why a selector has several sensors
In a shift-by-wire system, the only thing connecting your hand to the transmission is an electrical signal. A single failed sensor could command reverse when you wanted drive. To prevent that, manufacturers build the selector with several independent sensors, often Hall effect switches, arranged so that each lever position produces a known pattern of on and off signals. The control module reads the whole pattern. If one sensor sticks on or off, the pattern stops making sense, and the module flags it.
P08A6 is that check failing. It does not say which sensor is wrong, only that the set of readings does not add up.
What Mitsubishi's procedure says
Mitsubishi's service information for the 2023 Outlander plug-in hybrid gives a clear example of how this code is set and diagnosed. The code is monitored continuously. It is only judged when the hybrid control unit, the PHEV-ECU, has at least 9.0 volts of supply and the power mode is on. The judgement criterion is that a second gear lever position sensor is detected stuck on or off for 1.2 seconds or more, five times.
The troubleshooting hints list three causes: damaged wiring harness and connectors, a malfunction of the selector lever, and a malfunction of the PHEV-ECU. The diagnostic steps run in this order:
- Check for other codes first. The procedure asks whether the ECU has also set any of the individual sensor circuit codes, P1A37 through P1A46, which cover circuit high and circuit low for gear lever position sensors 1 to 8. If any are set, those are diagnosed first, because a single sensor with an open or short circuit is the simplest explanation for a correlation fault.
- Check the selector's ground circuits. With the selector connector unplugged, measure continuity from each of the selector's two ground terminals to body ground. The specification is continuity of 2 ohms or less.
- Check the ground lines between the ECU and the selector for opens.
- Check the selector's supply lines for opens and shorts to ground.
- Check all eight signal lines between the ECU and the selector for opens and shorts to ground.
- Test drive using the OBD drive cycle and recheck. If the code returns with all wiring good, the procedure replaces the selector lever. If it does not return, the fault is treated as intermittent.
That order reflects a general truth about this code on any make: the selector itself is the last thing to replace, not the first. A single corroded ground makes several sensors read wrongly at once, which looks exactly like a correlation fault.
Other vehicles: rotary dials and joysticks

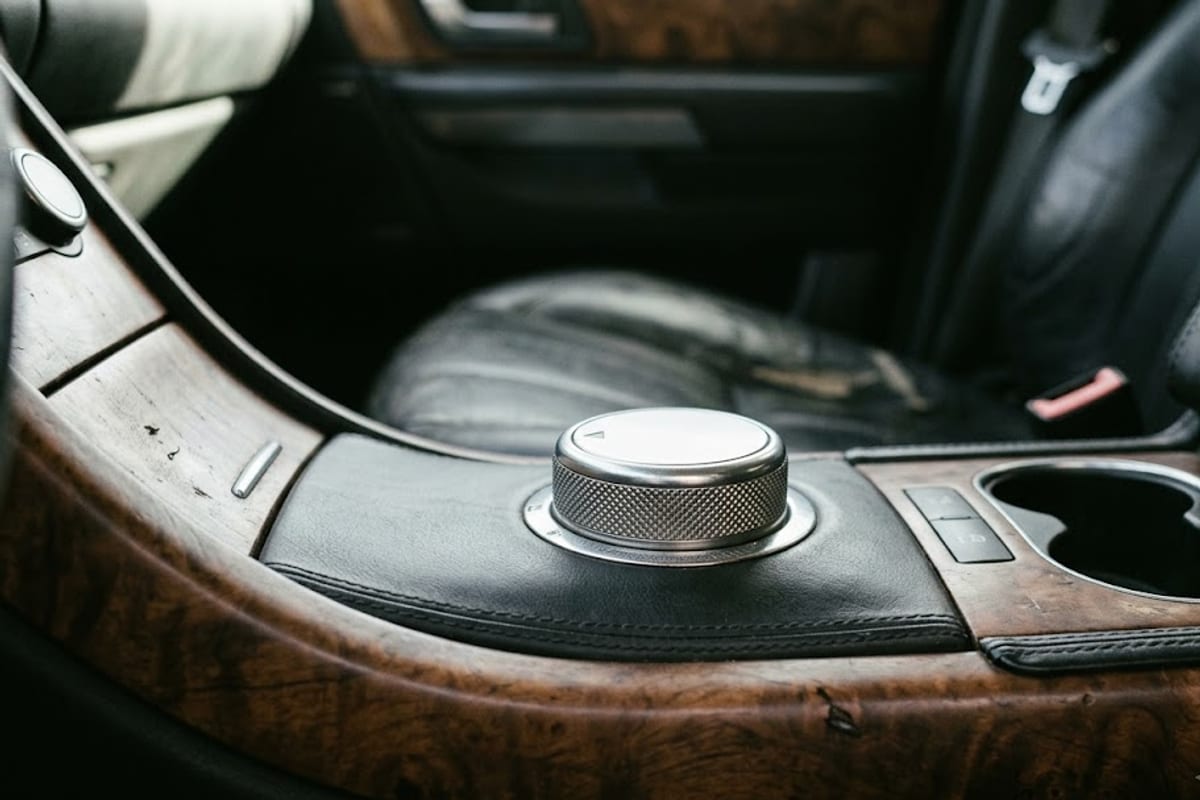

Land Rover and Range Rover owners, particularly on the Evoque, search for P08A6 alongside the rotary gear selector that rises from the console when the car starts. Those selectors are known for a separate internal failure that usually sets a lock control code, P176C-11, and leaves the dial stuck in park or unable to rotate. If P08A6 appears on those cars, the same approach applies: read all selector-related codes, check power and grounds, then look at the selector.
On joystick-type selectors, which return to centre after each movement, the sensor pattern includes the direction and distance of each push. Spilled drinks in the console are a frequent cause of sensor faults on this type, and the damage is often visible once the selector trim is removed.
Common causes, most likely first
- A poor ground at the selector or the controlling module.
- A damaged or corroded connector at the selector, including liquid damage from the console.
- A wiring fault on one of the sensor signal lines.

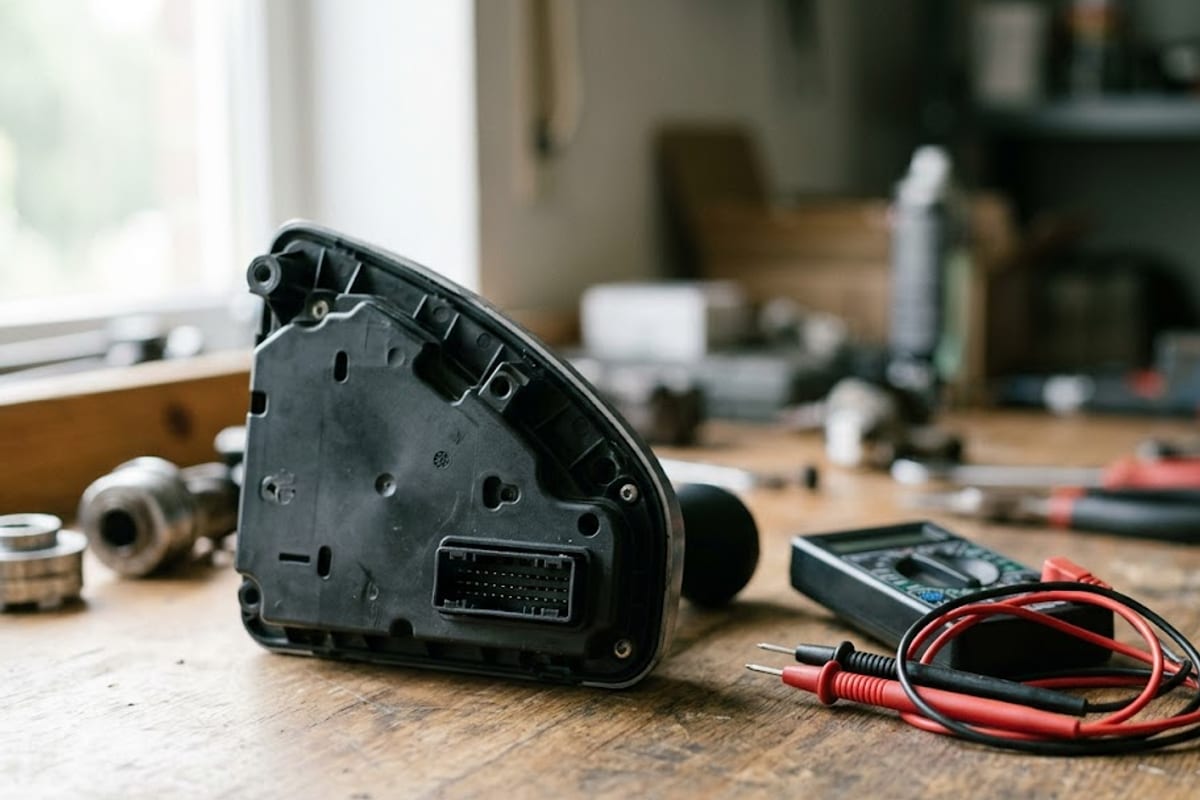

- A failed sensor inside the selector, which means replacing the selector assembly on most vehicles.
- The controlling module, rarely.
After the repair
Most selectors need no calibration after reconnection, but some do after replacement. Clear the code, then run through every selector position several times with the brake applied and the engine or hybrid system on. Confirm that the instrument cluster shows each position correctly and that the car moves in the right direction. If the fault was intermittent, drive through the full OBD drive cycle before concluding it is fixed. The guide to pending, stored and permanent codes explains why the code may still show as pending for a while afterwards.
Nearby codes in the gear lever sensor family include P0705, the older transmission range sensor circuit code used on mechanically linked selectors.
What the driver sees, by design
Because a wrong gear selection is dangerous, shift-by-wire systems react conservatively to a correlation fault. Depending on the vehicle, the selector may refuse the position you ask for and stay in park or neutral, the instrument cluster may flash the selected position, a chime may sound, or a message may ask you to stop safely and apply the parking brake. Some vehicles also block restarting until the fault clears. These reactions are the system doing its job. They are not a sign that the transmission itself has failed.
Check the 12-volt battery and software first
Mitsubishi's procedure only judges the code when the control unit has at least 9.0 volts. A weak 12-volt battery on a hybrid, which can happen if the car has stood for weeks, can still cause borderline sensor readings during start-up and a string of unrelated codes. Charge and test the 12-volt battery before chasing wiring. It is also worth asking a dealer whether a software update exists for the control unit, because manufacturers sometimes adjust how strictly these correlation checks are judged.
Frequently asked questions
Can I drive with P08A6?
If every selector position engages correctly and there is no instruction to stop, you can drive carefully to a workshop. If the car refuses drive or reverse, or engages them unreliably, do not drive it.
What does "multiple sensor correlation" mean?
That the several sensors inside the selector gave a combination of readings that does not match any valid lever position.
Is P08A6 the gear selector failing?
Sometimes, but check grounds and wiring first. Mitsubishi's procedure checks other sensor codes, grounds and each wire before replacing the selector lever.
Why did P08A6 appear after a drink was spilled?
Liquid in the console can reach the selector's electronics or connector and make one or more sensors read incorrectly. Clean and dry the connector, and inspect the selector for residue.
Does P08A6 need a dealer?
Not necessarily for the wiring checks, which any competent technician can do with a meter and the wiring diagram. The ground and signal line checks in the procedure are ordinary continuity and short-circuit tests. A replacement selector, or a software update for the control unit, may need dealer-level equipment on some makes.
Sources: Mitsubishi Motors service information, DTC P08A6-00 Gear Lever Position Sensor System – Multiple Sensor Correlation (2023 Outlander PHEV); SAE J2012 code definitions.
